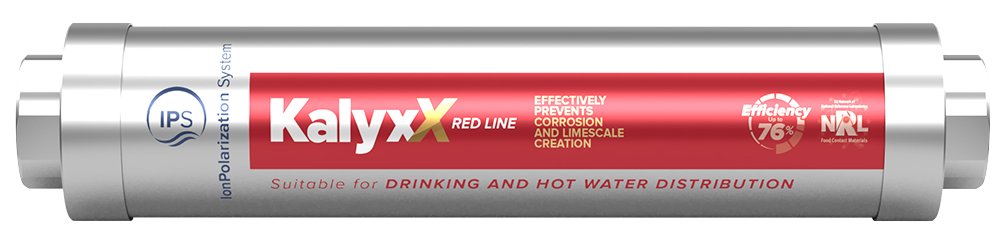

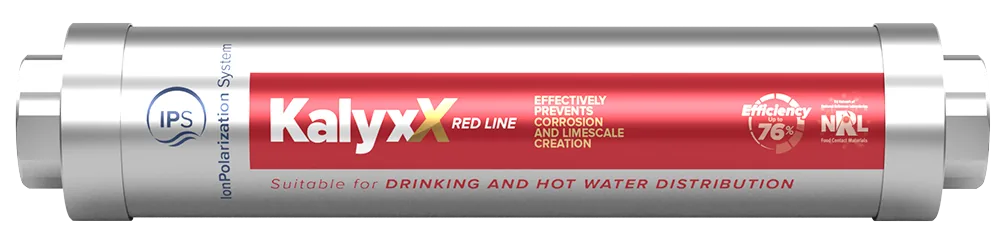

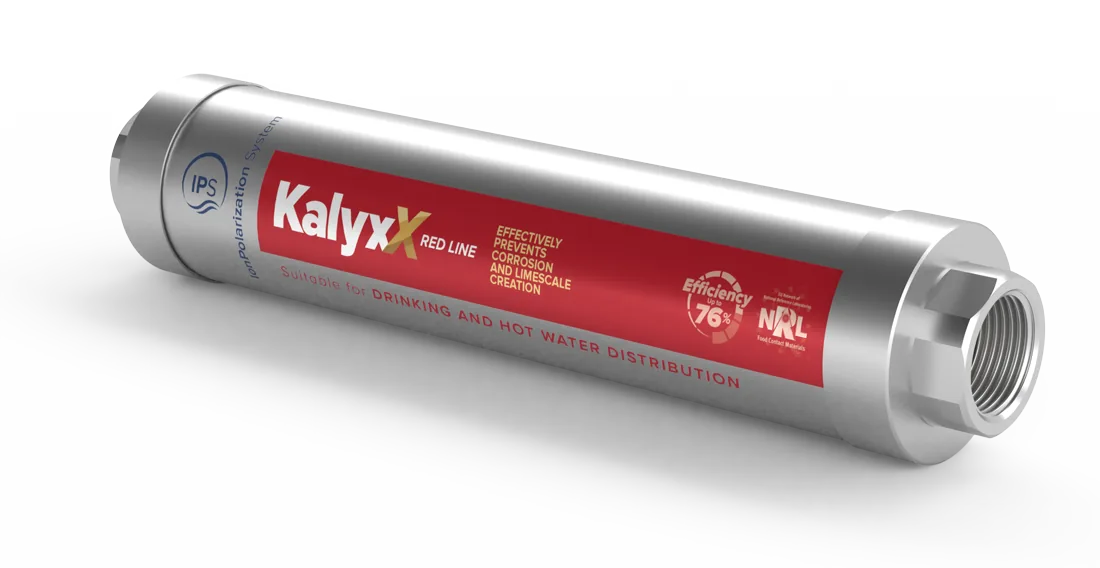

IPS KalyxX RedLine
Reduce Limescale Across Your Entire Water System
Patented TGP® technology helps reduce limescale formation with confirmed efficiency of 76%, without chemicals or external energy.
- 76% Confirmed Efficiency
- No Chemicals
- No External Energy
- Stainless Steel
- Drinking-Water Suitable
PKR 50,000
For whole-property protection.
Main-line TGP® system with a manufacturer-confirmed 76% limescale-formation reduction — no chemicals and no external energy.
Quantity
1
Secure checkout on Shopify · Delivery and payment options shown at checkout
View cartDesigned for whole-property water systems
Protect More Than Just One Appliance
Pipes
Helps reduce limescale formation inside water-supply pipework.
Valves & Taps
Helps reduce scale buildup on water-system components.
Shower Heads
Helps limit limescale formation affecting water outlets.
Home Appliances
Helps protect water-heating coils and water-contact components.
Whole Water System
Designed for installation within the property's water-supply system.
Engineered Protection Without Chemicals
76% Limescale Reduction
Reduces the creation of limescale on water-supply elements including pipework, valves, taps, shower heads and the water-heating coils of home appliances, with confirmed efficiency of 76%.
Patented TGP® Technology
Uses patented TGP® — Turbulent Galvanic Polarisation technology. No chemicals. No external energy.
Suitable for Cold Drinking Water
Suitable for cold drinking-water systems, supported by NRL certification for direct permanent contact with drinking water.
Health-Safe Materials
Each IPS component is manufactured from materials suitable for contact with drinking water.
Verified Hydraulic Properties
Hydraulic characteristics including pressure drop, pressure resistance and strength are supported by TSU testing.
Durable Stainless-Steel Construction
Manufactured using stainless steel 1.4301 with durable internal components. Warranty: 2 years. Expected operational service: at least 10 years under suitable operating conditions.
Results depend on water conditions, hardness, flow rate, installation quality and the product selected.
How IPS KalyxX Works
IPS is a flow-through device designed to help prevent the formation of solid sediments and corrosion in cold and hot-water appliances.
Inside the device are specially shaped electrodes made from two different electrically conductive materials. The patented electrode design uses TGP® — Turbulent Galvanic Polarization.
The turbine-shaped electrodes generate a swirling water flow, creating conditions that influence the structure and behaviour of minerals responsible for scale formation.
- 1Water Enters
- 2TGP® Treatment
- 3Reduced Limescale Formation
Where RedLine Helps Protect
- Main water lines
- Pipework
- Valves
- Taps
- Shower heads
- Water heaters
- Water-heating coils
- Washing machines
- Dishwashers
- Other compatible water-connected appliances
Designed for use with Copper, CPVC, PVC and PEX pipe systems.
Technical Specifications
| Connection | Female NPT/G × Female NPT/G |
| Technology | Patented TGP® discs |
| Magnetic components | Set of neodymium magnets at the input and output |
| Maximum flow rate | Up to 7 m³/h* |
| Material | Stainless steel |
| Compatible pipe types | Copper, CPVC, PVC, PEX |

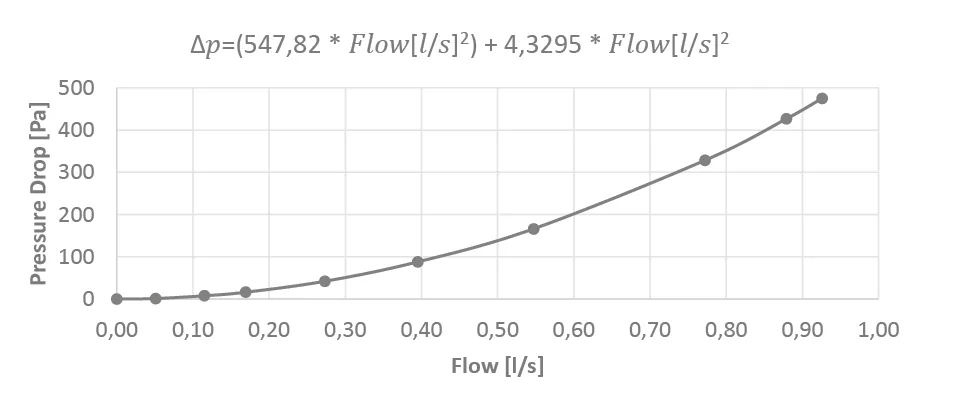

| Maximum pressure drop | 43 Pa – 692 Pa* |
| Operating temperature — inlet | 0 °C to 85 °C |
| Optimal temperature for maximum efficiency | 0 °C to 60 °C |
*Values depend on the selected model.

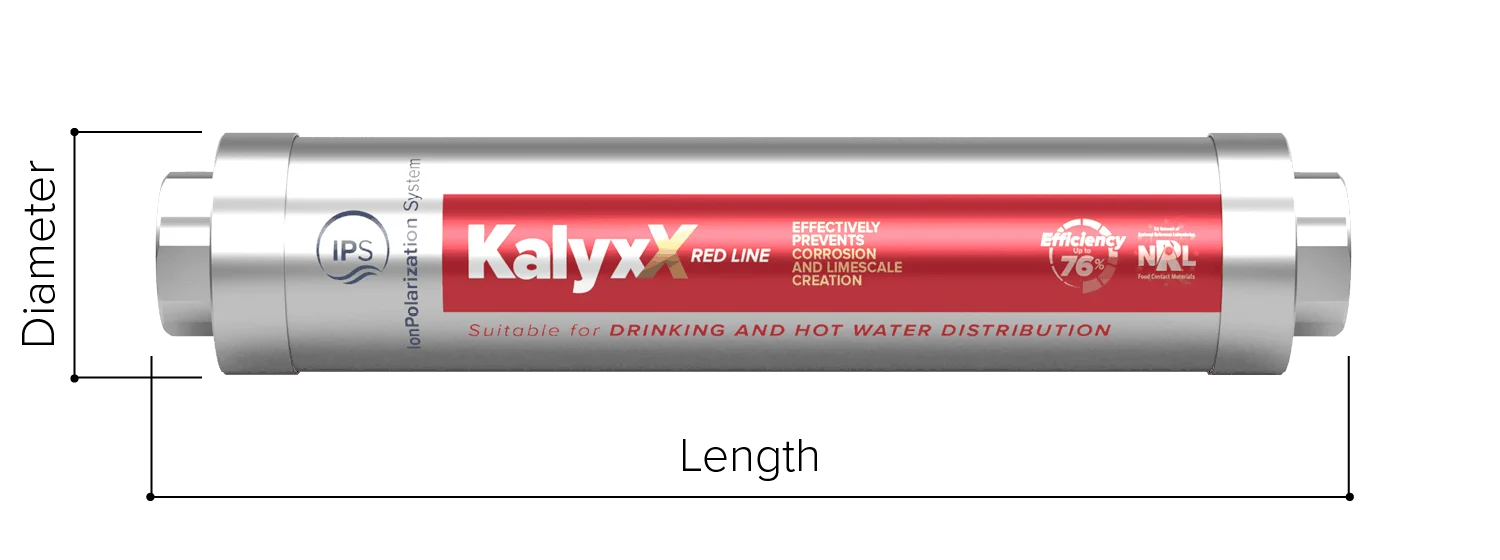

Diameter and length vary by model — see the model comparison below.
Choose the Right RedLine Model
- Connection
- G 1/2" female
- Diameter
- 50 mm
- Length
- 245 mm
- Weight
- 910 g
- Maximum pressure
- 10 bar / 1 MPa
- Maximum flow
- 1 m³/h
- Pressure drop at maximum flow
- 0.4416 mbar / 44.16 Pa
- Minimum flow
- 5 L/min

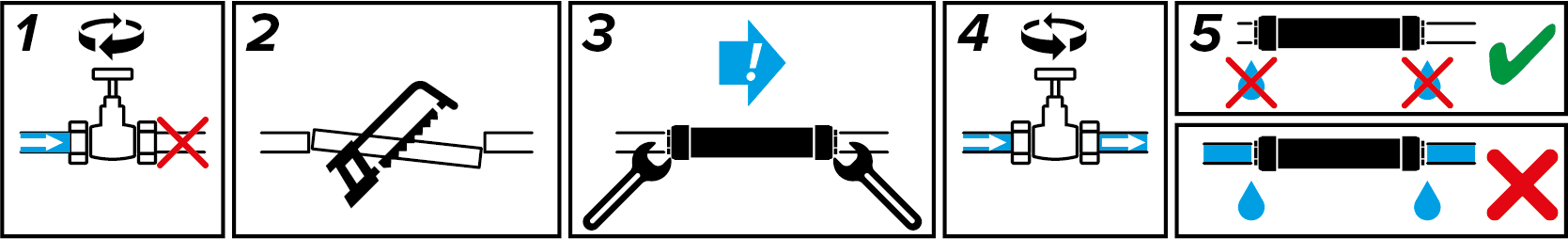

Installation Guidance
Installation notice
The IPS KalyxX device should not be installed in close proximity to equipment producing strong electromagnetic fields, particularly electric motors and pumps.
Normal electrical cables, including cables installed inside walls, and standard small electrical appliances do not generally produce an electromagnetic field strong enough to affect KalyxX operation.
Recommended Water Conditions
| pH | 6.5 – 8.5 |
| Iron | < 0.5 mg/L |
| Hardness | < 25 °dH (4.464 mmol/L) |
| Electrical conductivity | < 150 mS/m |
| TDS | < 950 ppm |
| Salinity | < 2000 mg/L |
Important
In water containing high chlorine levels, IPS technology lifespan may be reduced by approximately 50%, as chlorine can damage IPS electrodes.
If water properties fall outside the recommended ranges, please contact us for an individual assessment.
Tested. Certified. Documented.
Approvals and reports listed by the manufacturer for IPS KalyxX RedLine. Copies can be requested with your quotation.
- IAPMO
- TÜV
- NRL
- TSU
- CNAS
Technical Downloads
The technical sheet, installation instructions and certification documents are supplied on request — message us and we will send the files you need.
Explore Other KalyxX Solutions
KalyxX Active
Maximum limescale reduction of up to 90% with antibacterial protection for drinking-water systems.
More InfoKalyxX BlueLine
High-efficiency limescale reduction of 76% with additional antibacterial benefits.
More InfoKalyxX GreenLine
Designed for irrigation applications with 76% limescale reduction.
More InfoKalyxX Industry
Solutions designed for commercial and industrial water systems.
More InfoWashBall
Designed to help prevent corrosion and scale formation.
More InfoQuestions about RedLine
RedLine Gallery

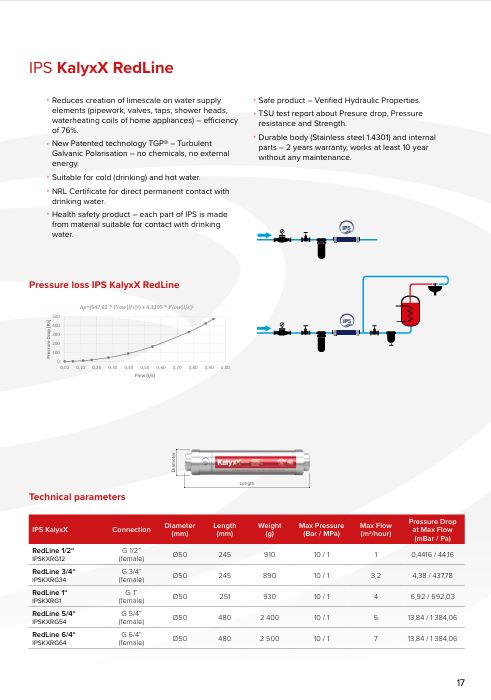

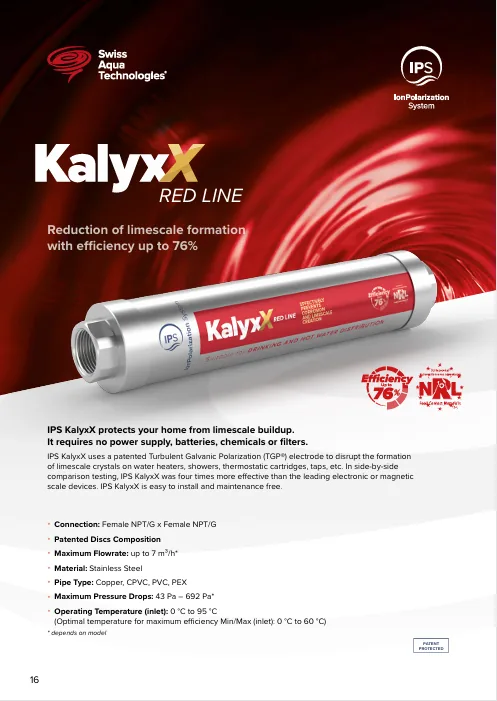

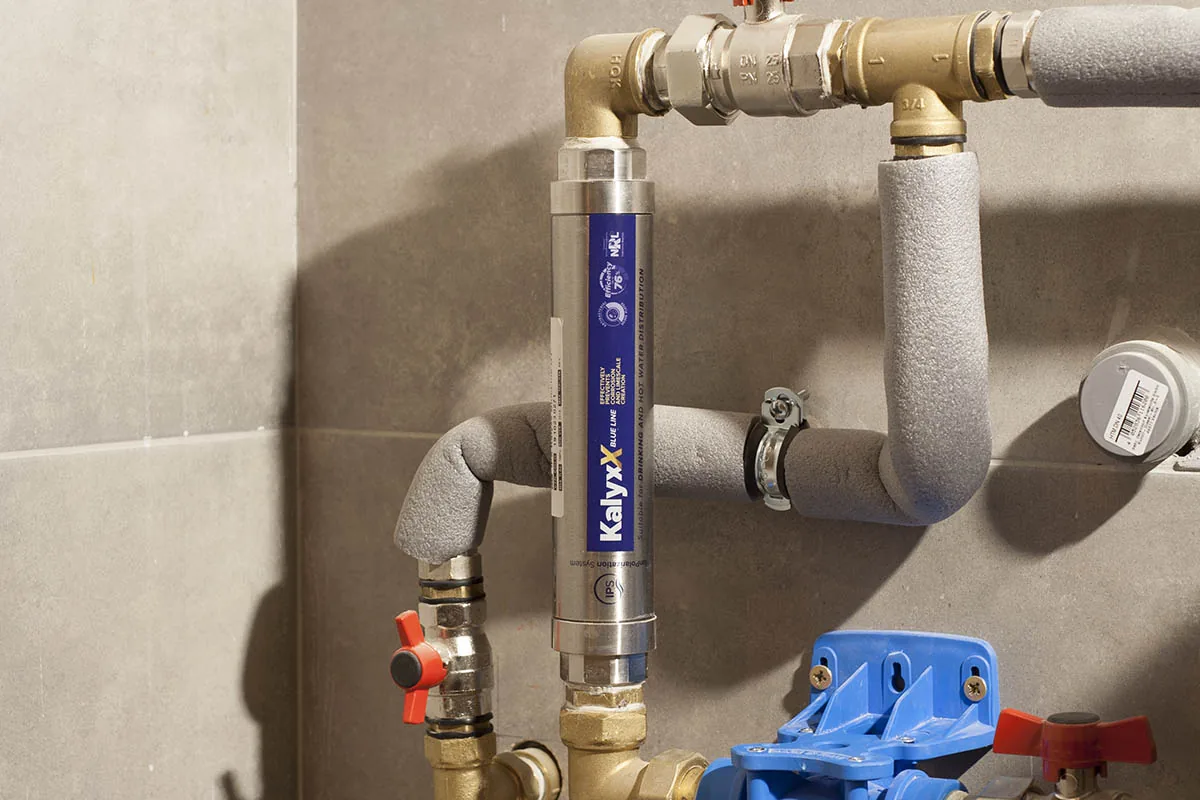

Product views, installation photos and technical drawings. Results depend on water conditions, hardness, flow rate, installation quality and the product selected.
Not Sure Which RedLine Model You Need?
Tell us about your property, water connection and application, and we'll help identify the most suitable KalyxX solution.
