KalyxX 100 Mini
Stop scale and grit at the appliance that suffers most — without rebuilding your plumbing.
- IPS100 technology
- 75 μm mud & rust filter
- Angle-valve fitting
- No electricity
IPS100 point-of-use protection that screws onto an angle valve to reduce limescale deposits and filter mud and rust to 75 μm. Not suitable for drinking-water treatment.
Not suitable for drinking-water treatment. The Mini protects appliances; it does not purify or disinfect water.
Request price
Pricing and availability are confirmed per installation once we know your valve size and water conditions.
- Point-of-use protection technology
- IPS100Point-of-use protection technology
- Mud and rust filtration
- 75 μmMud and rust filtration
- Cartridge life, or 22,000 L
- 12 monthsCartridge life, or 22,000 L
- Rated flow
- 0.9 m³/hRated flow
Best for
Washing machine
Fits the angle valve behind the machine — the most common installation.
Dishwasher
Protects the inlet valve and heating element from scale and grit.
Water heater
Point-of-use protection on the cold feed of a single heater.

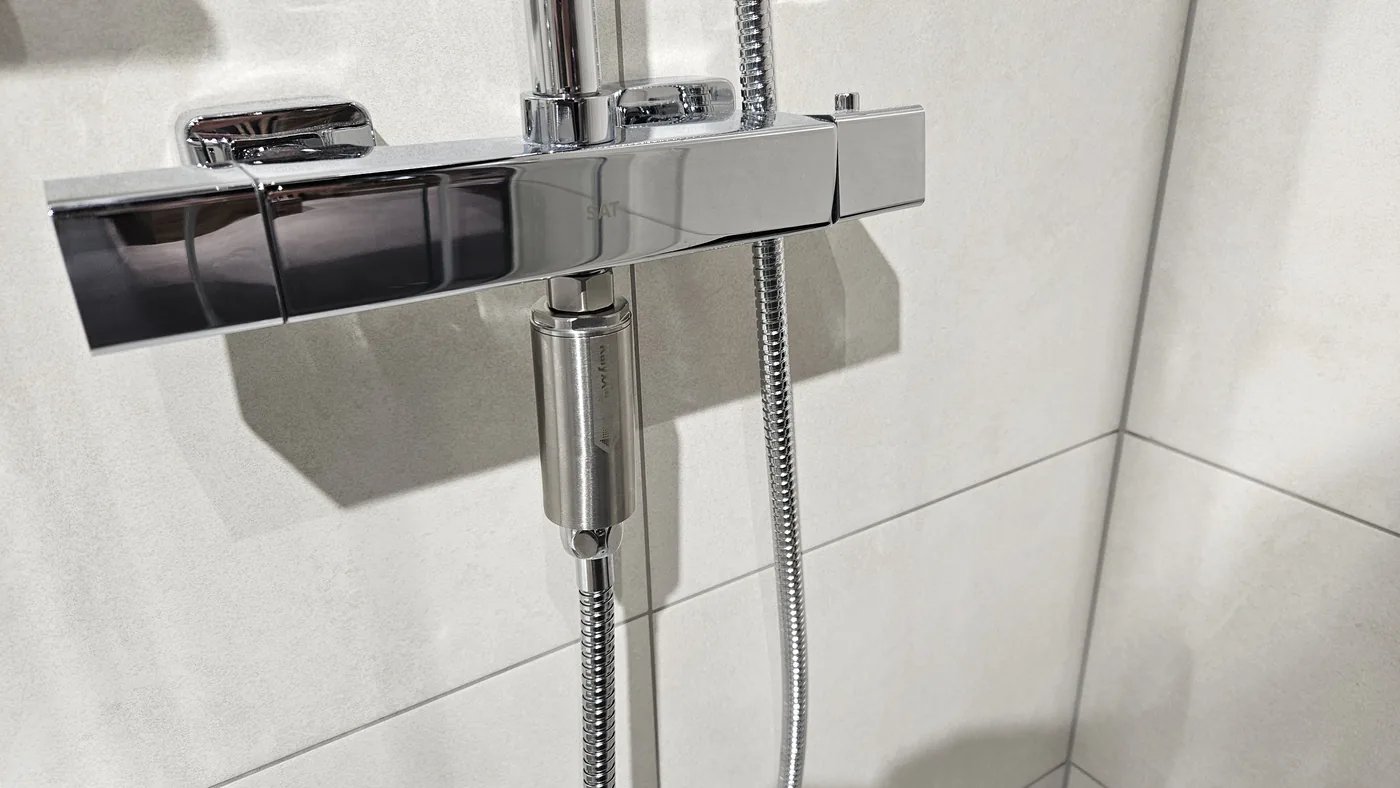

Shower
Helps keep scale and sediment off the shower supply.

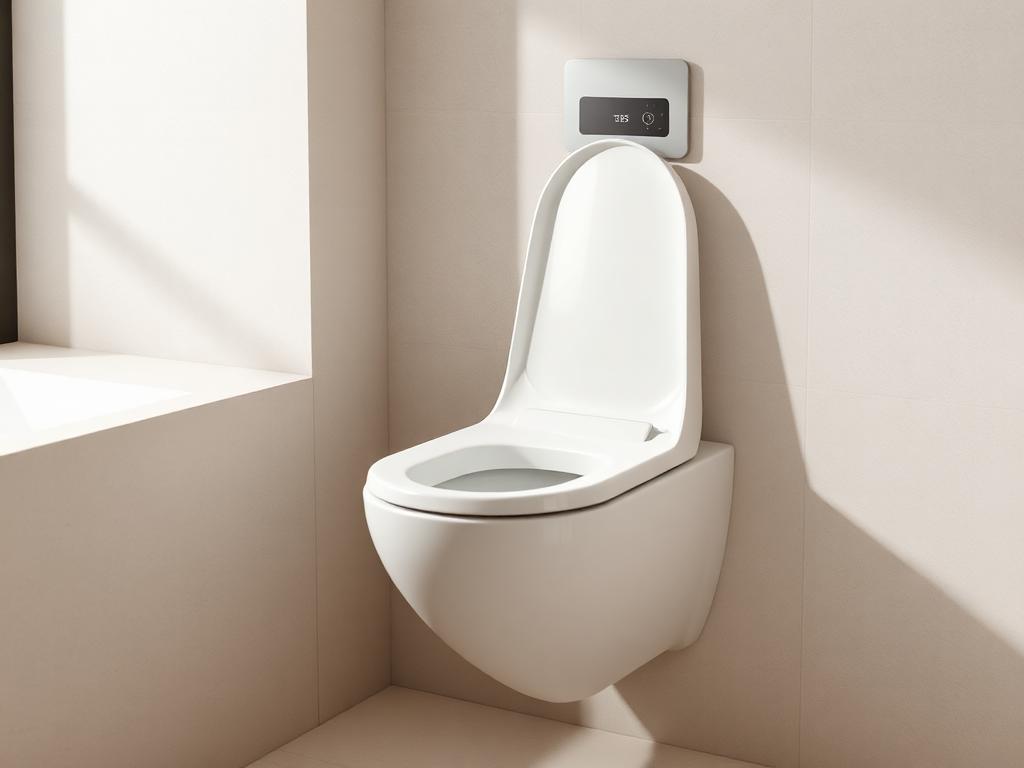

Smart toilet
Protects sensitive valves and nozzles from mud, rust and scale.
Technology
How IPS100 works in the Mini

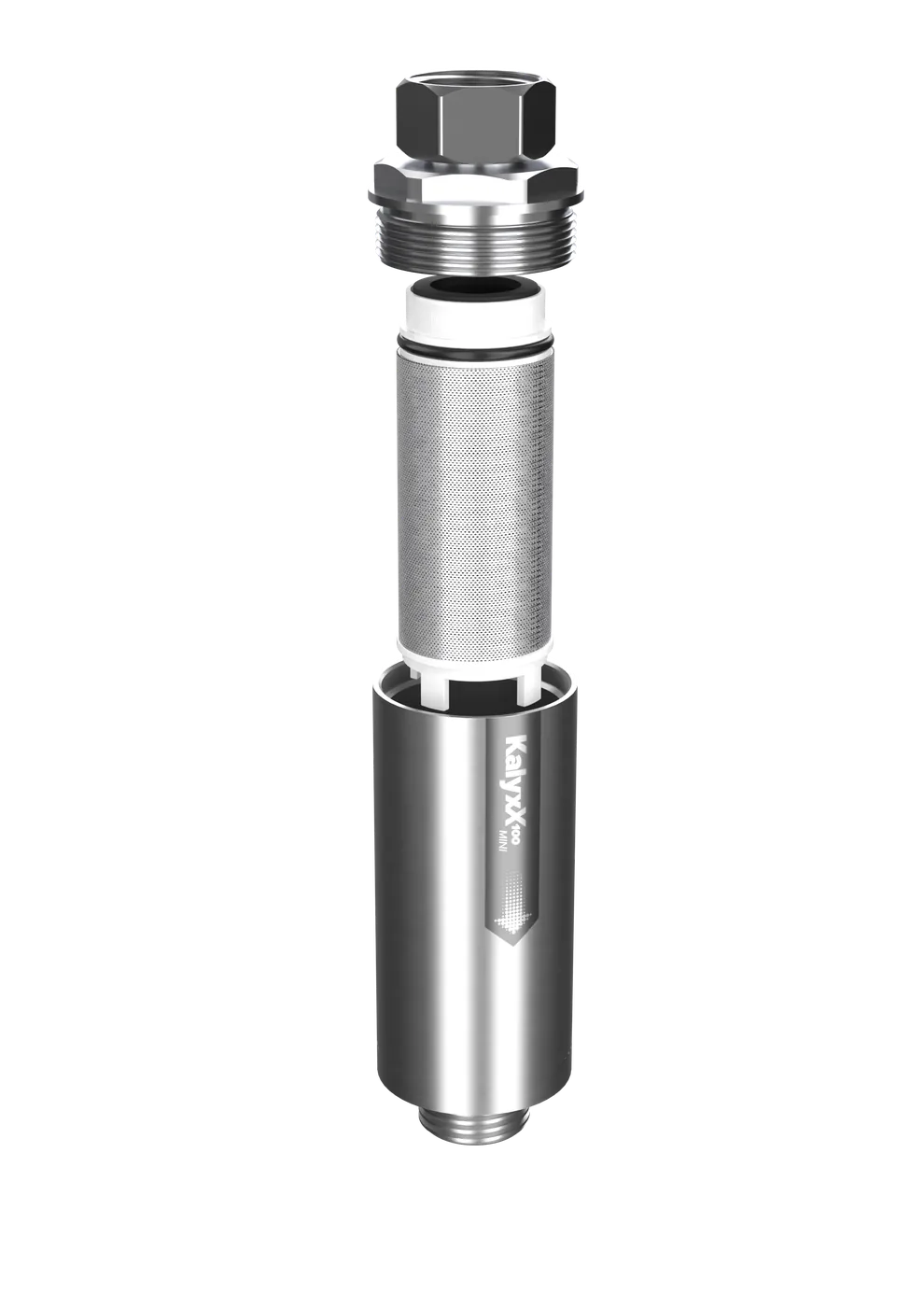

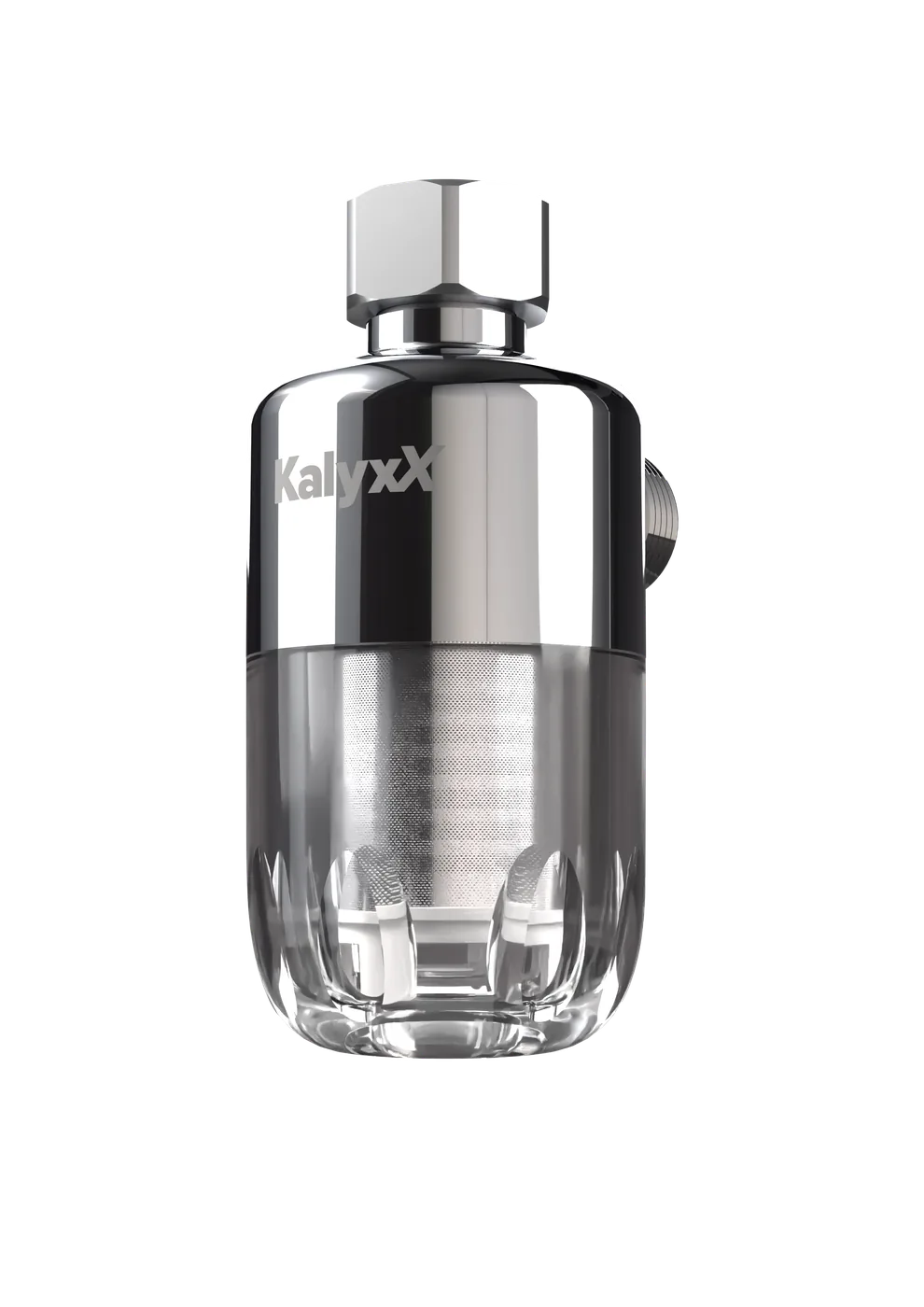

Inside the metal body, a white tablet filtration medium works together with the electrodes to reduce calcium's ability to form deposits, while a 75 μm mesh holds back mud and rust before they reach the appliance valve. The manufacturer states effective protection against limescale and impurities with 100% efficiency for this IPS100 point-of-use device.
- Installs at an angle valve for a single appliance: washing machines, dishwashers, smart toilets, water heaters or showers.
- IPS100 technology — the manufacturer states effective protection against limescale and impurities with 100% efficiency.
- Filters mud and rust down to 75 μm.
- White tablet filtration medium works with the electrodes to reduce calcium's ability to form deposits.
- Cartridge service life up to 12 months or 22,000 litres, whichever comes first and subject to water and usage conditions.

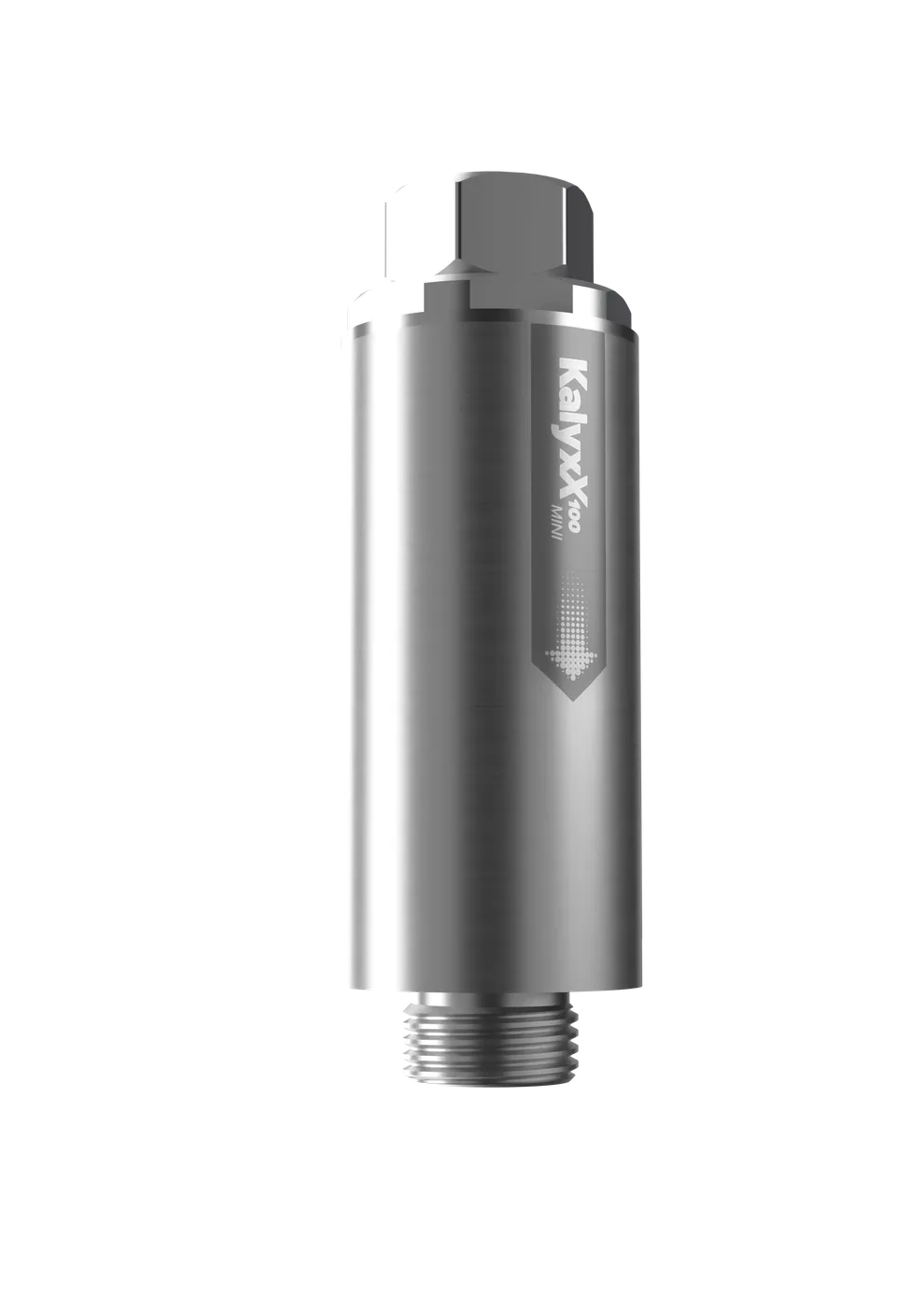

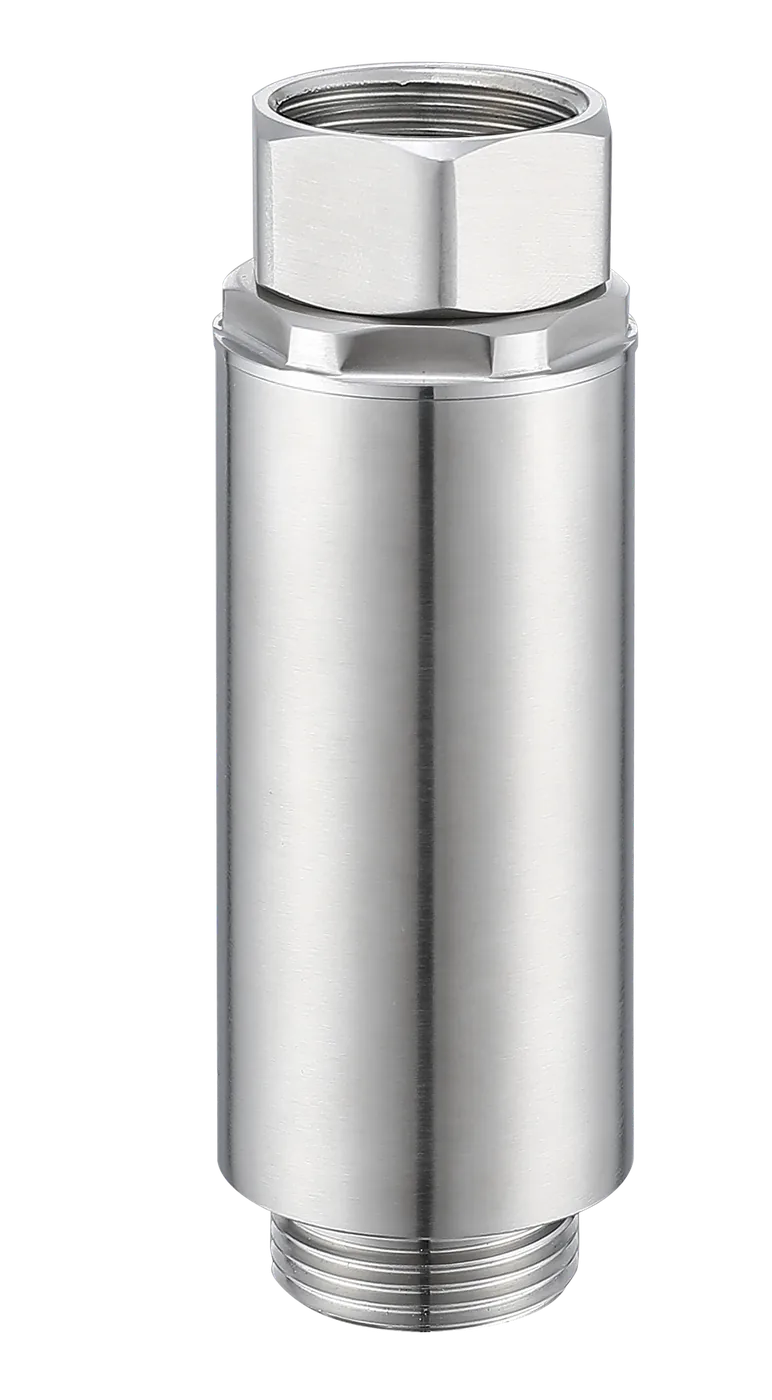

- Durable metal body and thread; screws directly onto an angle valve.
What the manufacturer claims
- May reduce detergent consumption.
- Supports detergent effectiveness.
- Helps reduce washing-machine failures and limescale maintenance.
- Helps protect connected appliances.
Results depend on water conditions, hardness, flow rate, installation quality and the product selected.

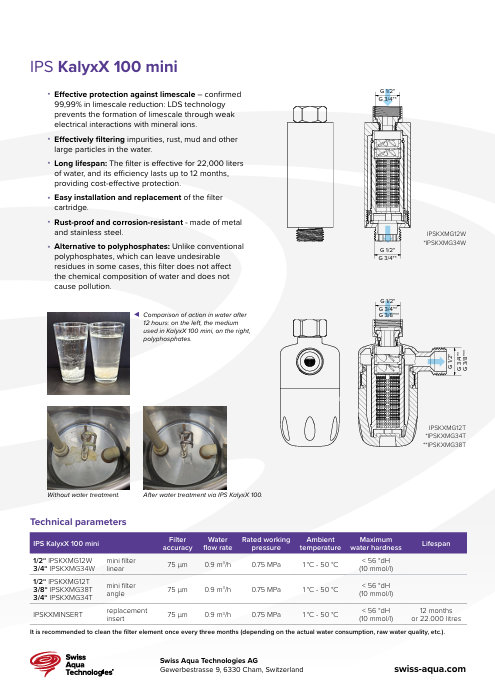

Technical specifications
| Parameter | Detail |
|---|---|
| Model | IPS KalyxX 100 Mini |
| Technology | IPS100 with white tablet filtration medium |
| Filter accuracy | 75 μm |
| Flow | 0.9 m³/h |
| Rated working pressure | 0.75 MPa |
| Ambient temperature | 1–50 °C |
| Maximum water hardness | < 56 °dH (10 mmol/L) |
| Cartridge service life | Up to 12 months or 22,000 L, whichever comes first |
| Connection variants | 3/8", 1/2" or 3/4" female |
| Drinking water | Not suitable for drinking-water treatment |
Connection variants are shown on the official KalyxX comparison page. Please confirm your angle-valve size with us before ordering.
Installation and cartridge care
- 1
Close the angle valve serving the appliance and disconnect the inlet hose.
- 2
Confirm your valve thread — the manufacturer shows 3/8", 1/2" and 3/4" female variants.
- 3

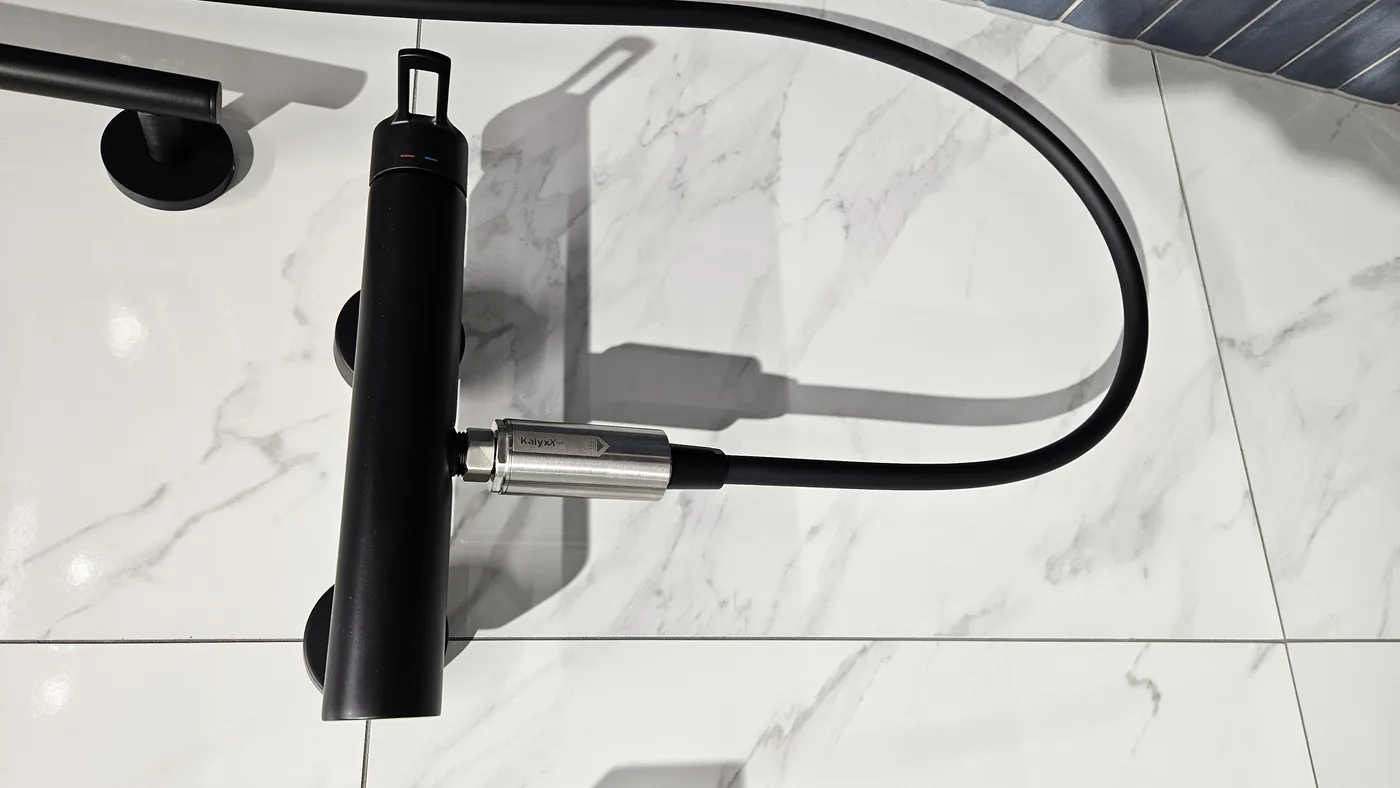

Screw the Mini directly onto the angle valve, keeping the seal in place.
- 4
Reconnect the appliance hose to the Mini outlet and hand-tighten.
- 5
Open the valve slowly and check for leaks before running the appliance.
Cartridge replacement
Up to 12 months or 22,000 litres, whichever comes first. Heavier use or dirtier supplies shorten this.
User-installable, with a check
It screws straight onto an angle valve, but confirm the connection size first and use a professional plumber if you are unsure.
Limitations
Protects one appliance only. It does not soften water, does not remove dissolved minerals and is not suitable for drinking-water treatment. Maximum water hardness < 56 °dH (10 mmol/L).
Questions about the Mini
Need whole-property protection?
Compare the Mini against the main-line KalyxX RedLine.
